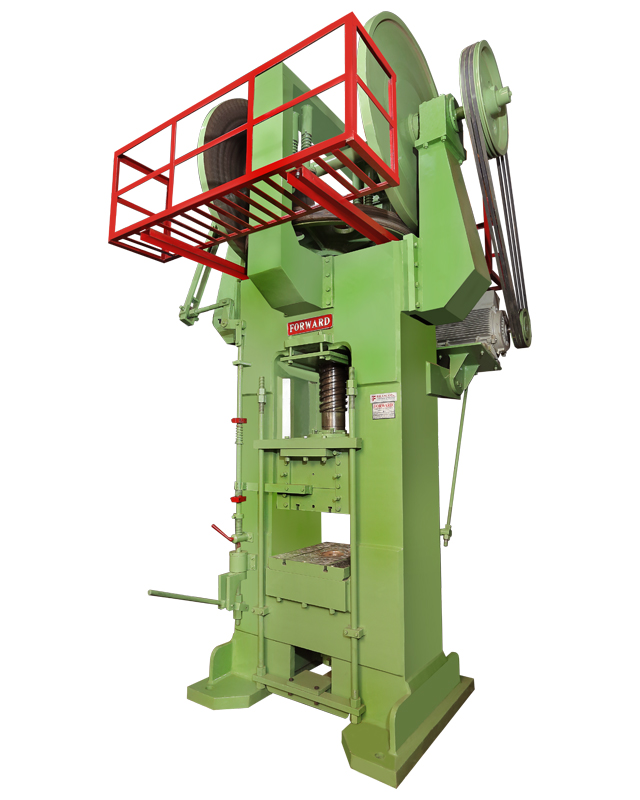

| Capacity in Tons | 30 Tons | 50 Tons | 100 Tons | 150 Tons | 200 Tons | 300 Tons | 400 Tons | 500 Tons |
|---|---|---|---|---|---|---|---|---|
| Dia of Screw | 4" | 4½" | 5½" | 6½" | 7" | 8" | 10" | 11" |
| Stroke of Press | 7½" | 8½" | 11" | 13" | 14" | 16" | 17" | 19" |
| Table of Slide (Max) | 14½" | 16½" | 20" | 23" | 24" | 26½" | 29" | 31" |
| Table of Slide (Min) | 7" | 8" | 9" | 10" | 10" | 10½" | 12" | 13" |
| Size of Table (Front) | 12" | 16" | 18½" | 20" | 22" | 24" | 28" | 30" |
| Size of Table (Side) | 12" | 15" | 19" | 21" | 21" | 25" | 28" | 30" |
| Distance Table to Guide | 6" | 7" | 9" | 10" | 10" | 12" | 13" | 16" |
| Bore in Table | 3" | 3" | 4" | 5" | 5" | 6" | 6" | 6" |
| Bore in Ram | 1½" | 1½" | 2" | 2½" | 2½" | 3" | 3" | 3" |
| Dimensions of Ram | 9"x9" | 12"x12" | 14"x14" | 15½"x15½" | 17"x17" | 19"x19" | 22"x22" | 24"x24" |
| R.P.M | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 |
| H.P. Required | 5 H.P | 7.5 H.P | 10 H.P | 15 H.P | 20 H.P | 30 H.P | 40 H.P | 50 H.P |
| Height | 8"-4" | 9"-4" | 10"-4" | 12" | 12"-8" | 14"-6" | 15"-6" | 17" |
| Foundation Holes | 22"x18"x1" | 28"x20"x1" | 34"x28"x1½" | 42"x32"x2" | 46"x36"x2" | 50"x42"x2" | 56"x44"x2frac12;" | 60"x50"x2frac12; |
| Weight in kgs. Approx | 2100 kg | 3200 kg | 5200 kg | 7200 kg | 9500 kg | 12500 kg | 16500 kg | 24000 kg |
Note:-
1. Every effort is made to accommodate customers for their special requirement for charge in the Standard Specification such as STROKE length, Shut Height. Bore for die clamping & in Nut Plate etc.
2. The above specification / dimensions are approximate. We reserve the right to modify the design & specification for improvement sake as and when considered necessary without and notice.
